Two Door One Way Integrated Controller
- High-performance hardware with 32-bit ARM7 processor
- Supports multiple authentication methods such as card, password,card+code, and fingerprint
- Enhanced hardware protection with opto-isolator protection for inputs and varistor protection for outputs.
- Robust network communication with TCP/IP supporting transmission modes such as TCP, UDP, RTP, and multicast
- Supports real-time logs and event monitoring

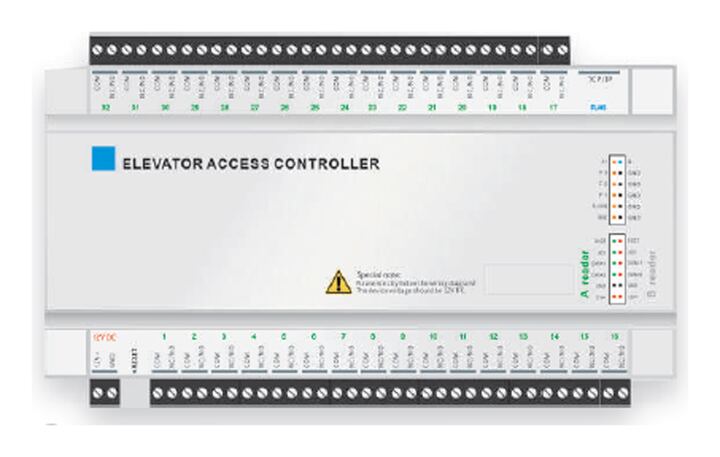

32 Floors Elevator Cloud Controller
- High performance 32bit CPU
- Stores up to 52,000 card users and up to 200,000 events and transactions
- Supports 10/100M TCP/IP and Wiegand 26/34/37 interface for RFID reader
- Supports up to 32 door lock through NO/NC port
- Supports up to 32 floors elevators

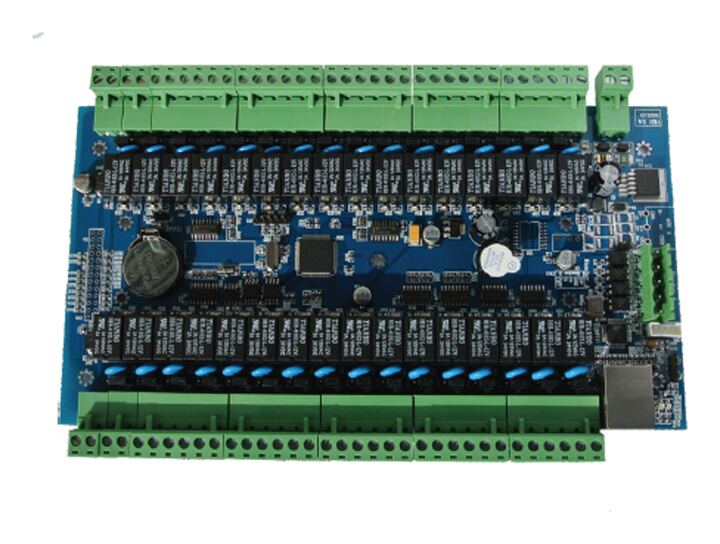

32 Floors Elevator Controller
- High performance 32bit CPU processor
- Standard 10/100M TCP/IP communication
- Big capacity flash chip,120,000 card holders, 200,00 record
- Each panel support 32 outputs, & support NO/NC & we can change NO/NC through software or jumper
- Each panel can connect a expansion panel to reach 64 outputs
Four Door Two Way RFID Cloud Controller
- Support 8 WG reader input with WG26,34,35,36,40,66......
- Big flash capacity can keep data for 10 years if no power.
- Support LCD screen.
- WEB server is built in access control. We can manage and real time monitor and no need install software.
- Access control’s time zone can reach as many as 8 groups and each group can have different verifications.

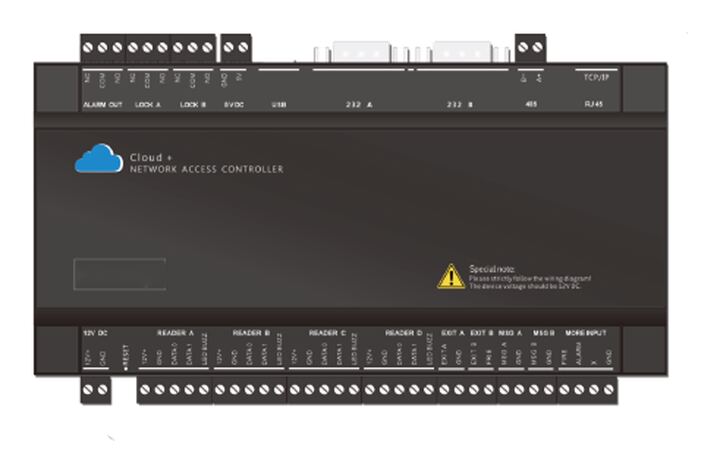

Two Door Two Way RFID Cloud Controller
- Support 4 WG reader input with WG26,34,35,36,40,66......
- Big flash capacity can keep data for 10 years if no power.
- Support LCD screen.
- WEB server is built in access control. We can manage and real time monitor and no need install software.
- Access control’s time zone can reach as many as 8 groups and each group can have different verifications.
Four Door Two Way RFID Controller
- Integrated TCP/IP communication for stable and fast data transmission
- .Large flash memory with data retention upto 10 years
- Built-in web server for monitoring and management
- Upto 8 time zones with flexible access verification modes
- Supports multiple authentication modes
Two Door Two Way RFID Controller
- Integrated TCP/IP communication for stable and fast data transmission
- Large flash memory with data retention upto 10 years
- Built-in web server for monitoring and management
- Upto 8 time zones with flexible access verification modes
- Supports multiple authentication modes
